Home   --> Categories --> Bath Controls --> SINGLE SPEED
PUMP CONTROLS --> Acriform® ATS-100
Electronic Control

Acriform� ATS-100
Electronic Control


Acriform ATS-100 oval switch pump timer

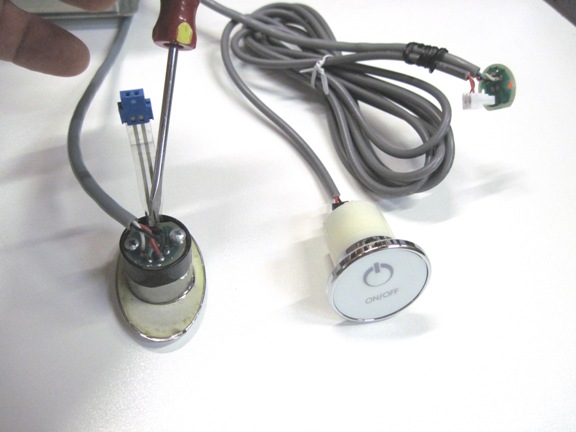

Assuming there is power at the control box, and the pump tests OK, you can test the switch by unplugging the blue ribbon wire underneath and shorting the two pins as in the picture, left (switch can be accessed by carefully prying up with a small knife). If this turns the pump on and off, the 1-Touch Keypad, PLUS 2-Pin Cable Connector (below and in picture, left) make an ideal replacement. Otherwise, you will need a complete 1-Touch Pump Timer Kit. Professional installation is recommended.

Page 1 of 1

CAN$14.50

CABLE (4 PIN) CONNECTOR TO 2 PIN

CAN$52.50

KEYPAD 1-TOUCH 2 IN ROUND - CHROME

CAN$52.00

KEYPAD 1-TOUCH 2 IN ROUND - WHITE

CAN$195.00
Call for availability

PUMP TIMER KIT, 1-TOUCH ROUND - WHITE

CAN$195.00

PUMP TIMER KIT, 1-TOUCH ROUND - CHROME

CAN$38.50

KEYPAD 1-TOUCH 1.5 IN ROUND - WHITE

CAN$42.00

KEYPAD 1-TOUCH 1.5 IN ROUND - CHROME

CAN$45.50
Call for availability

KEYPAD 1-TOUCH 1.5 IN ROUND - BRUSHED NICKEL

CAN$165.00

TMS LITE 1 SPEED PUMP CONTROL (1-TOUCH BOX ONLY

CAN$12.50

CABLE (2 PIN) CONNECTOR FOR 1-TOUCH KEYPAD

CAN$15.25

NEW CONTROL ADAPTER 4PIN (OLD BOX - NEW KEYPAD)
