Used by Jacuzzi Canada in the 1990's. Chrome trimmed touchpad with 7 red lights on face, connected
to ribbon cable going to electronic control box under the bath. If defective, have the following

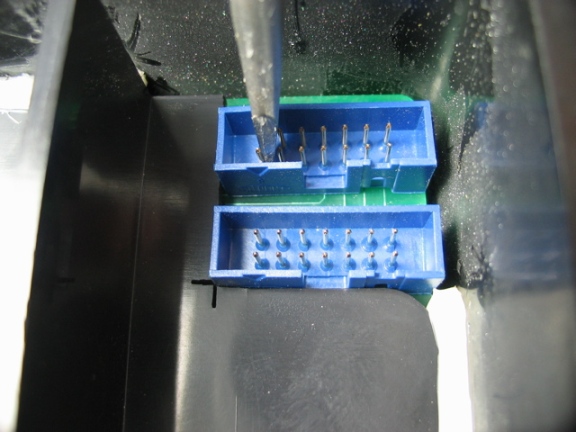

tested: (1) 120 volts power at the box (2) Pump runs if connected directly (3) Momentarily
test-contact first two pins on bottom of top row - SHOWN IN PICTURE, LEFT. If that works, the
1-touch switch, plus special 2-pin cable shown below can be used. If not, the control box and touch
pad must both be replaced with a new 1-touch pump timer kit, shown below.
|
